Get a free bucket-o-snakes...

[Don P.]

... with that 'barn find' R60/5 !

So, the problem started with the 31 42 1 230 467, steering damper knob: wouldn't unscrew !
The E.P.O. decided to get to the bottom of it, note: front end fully assembled.

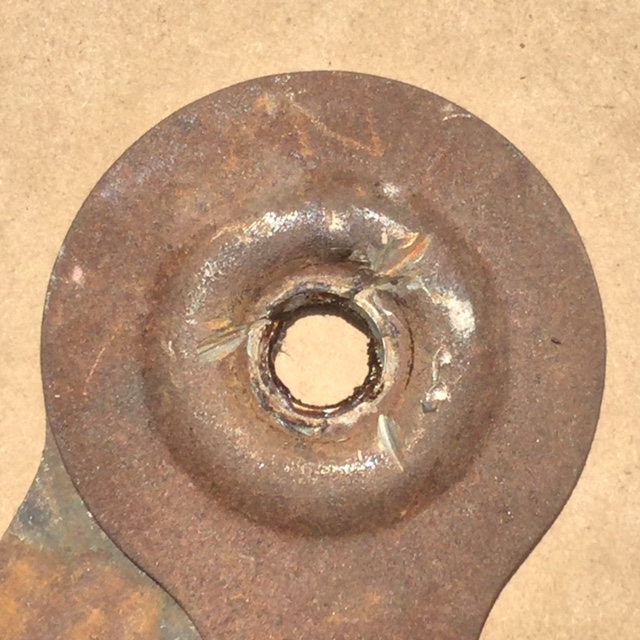

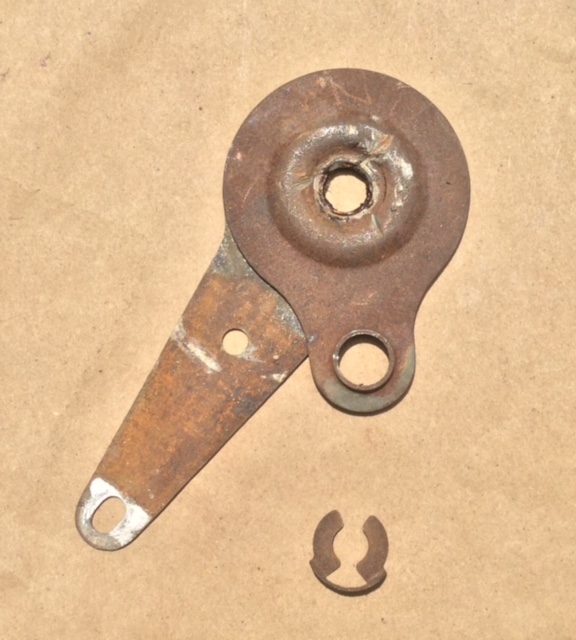

After trying in vain to fit a wrench on the captive nut, holding the damper plates together,
'Fred Flintstone' turned to his trusty hand-held die grinder...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.JPG
Type: image/jpeg
Size: 160008 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment.jpe>
-------------- next part --------------


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image2.JPG
Type: image/jpeg
Size: 119219 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0001.jpe>
-------------- next part --------------

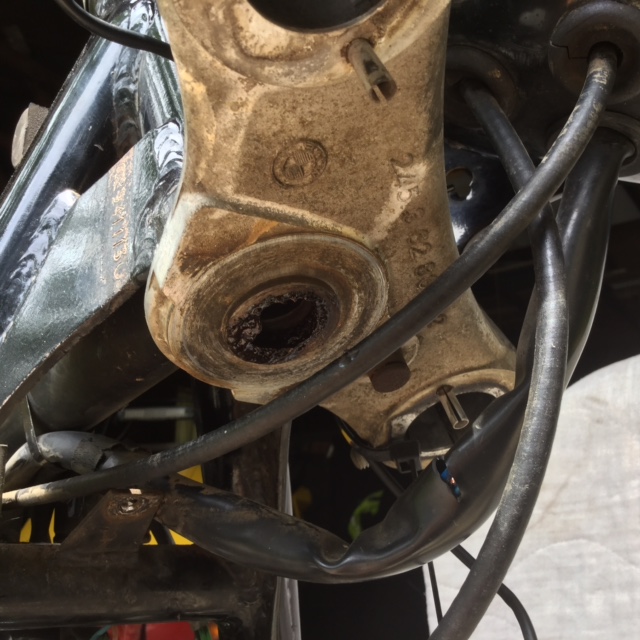

Hmmm, steering damper still would not come loose !

Ah, decades of miserable storage in the barn had melted and fussed the 32 42 1 230 588, support ring, fast to the lower, threaded rod...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image3.JPG
Type: image/jpeg
Size: 148812 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0002.jpe>
-------------- next part --------------

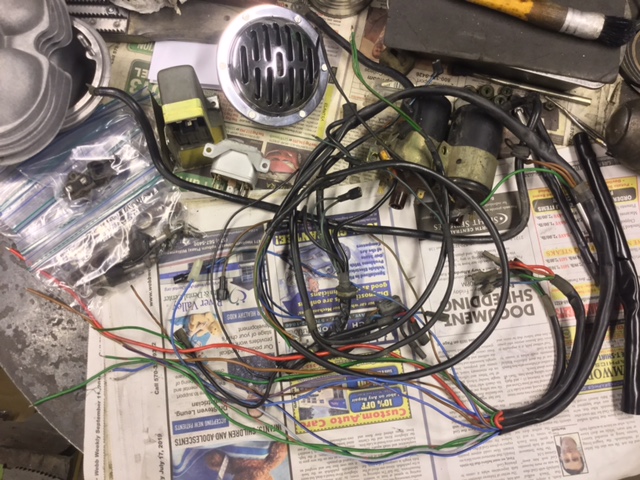

Your's truly found all this out during my disassembly... and much more ! Note the main electrical harness, just below the spring pin(vent) of the left fork boot ! Grrrrr...

Time to dump the 'bucket-o-snakes' out and affect repairs...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image4.JPG
Type: image/jpeg
Size: 172833 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0003.jpe>
-------------- next part --------------

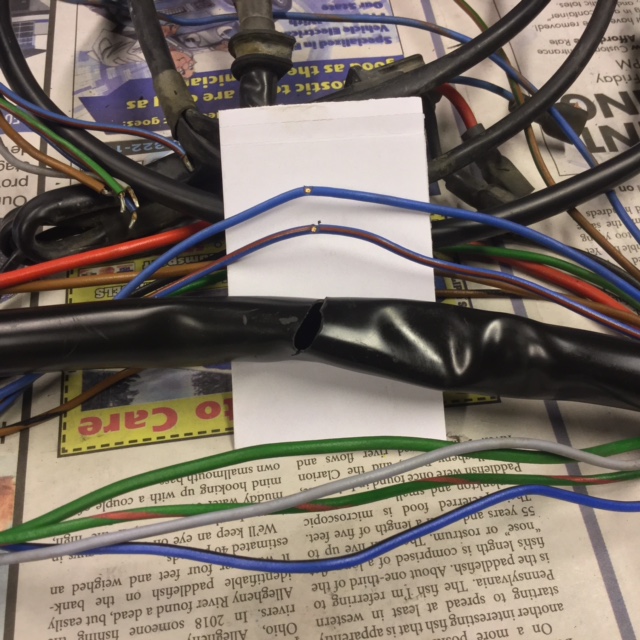

Charging circuit and left turn wires got nicked...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image5.JPG
Type: image/jpeg
Size: 176880 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0004.jpe>
-------------- next part --------------

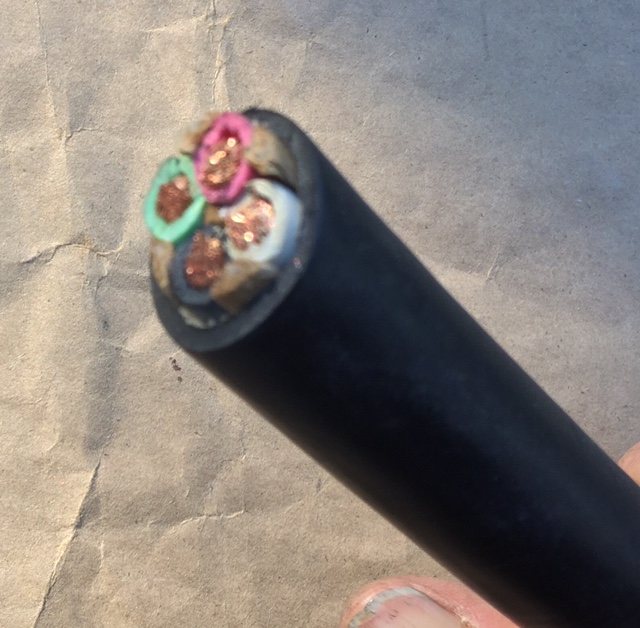

Not a problem ! Local electrical supply house had cable remnants available...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image6.JPG
Type: image/jpeg
Size: 147583 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0005.jpe>
-------------- next part --------------

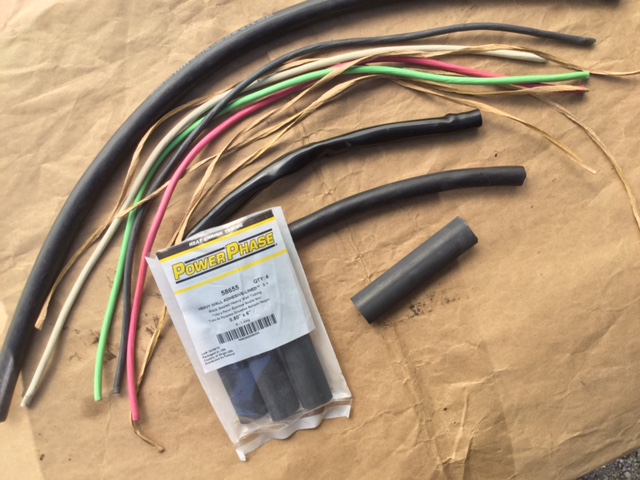

Which I gutted for the sheathing: water, oil, UV resistant and nicely flexible...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image7.JPG
Type: image/jpeg
Size: 125976 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0006.jpe>
-------------- next part --------------

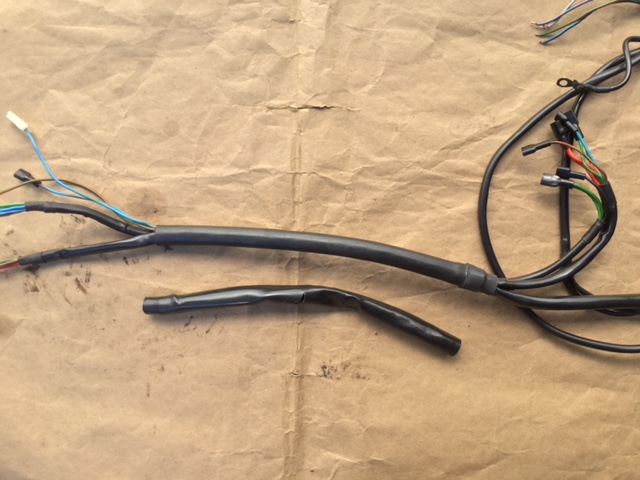

Some adhesive lined shrink tubing; few hours of re-weaving the harness and...

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image8.JPG
Type: image/jpeg
Size: 109942 bytes
Desc: not available
URL: <http://mailman.dudley.nu/pipermail/paairheads/attachments/20200808/0ea59a02/attachment-0007.jpe>
-------------- next part --------------


Lovely, just lovely... good for another fifty years !

D.
Comments ! Questions ?
Please post in the thread where applicable, so I don't have to send multiple private messages.
