Clutch Pics

[Kevin Fahey]

Kroil worked its magic and the clutch pack finally popped free with minimal effort.

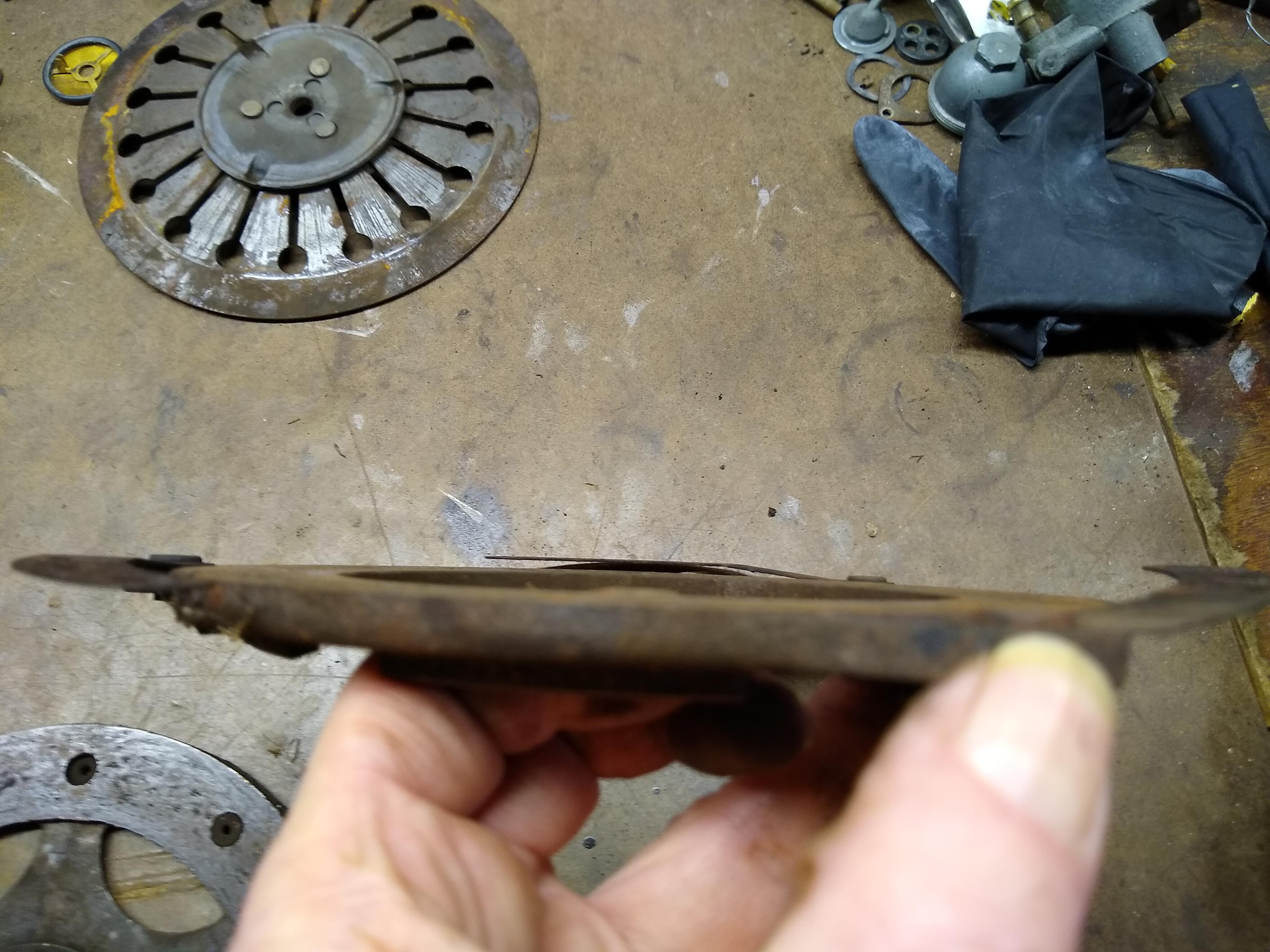

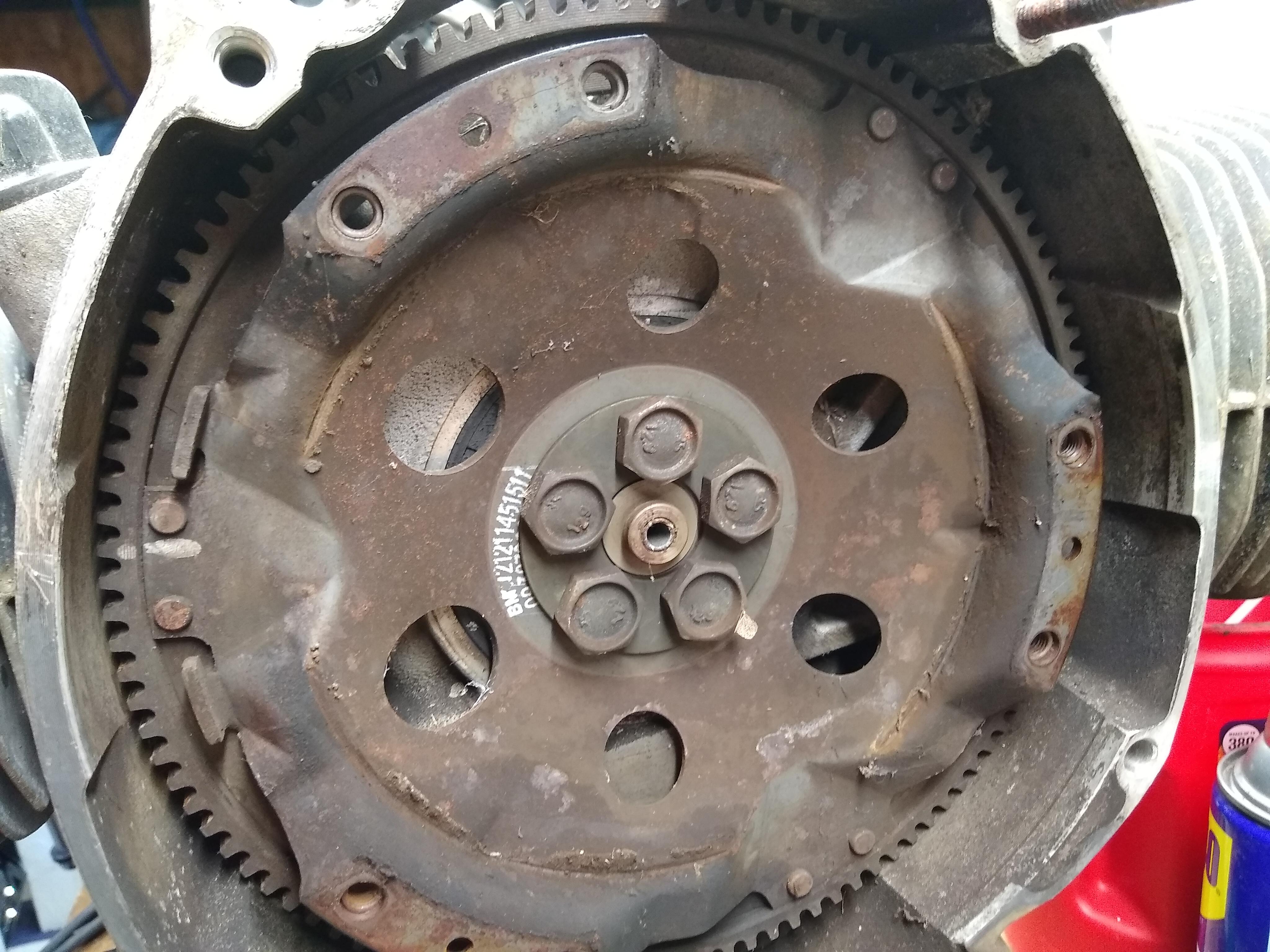

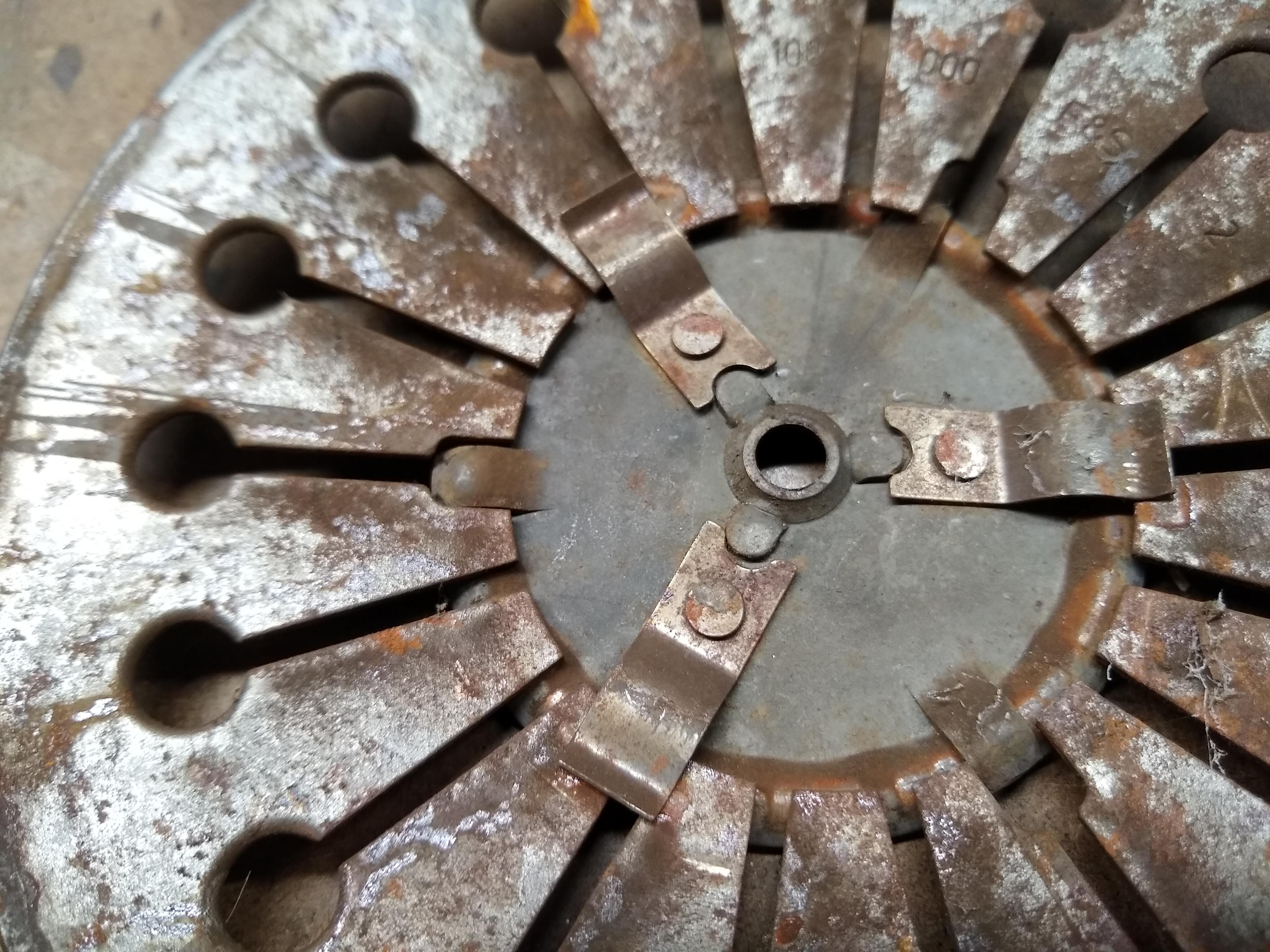

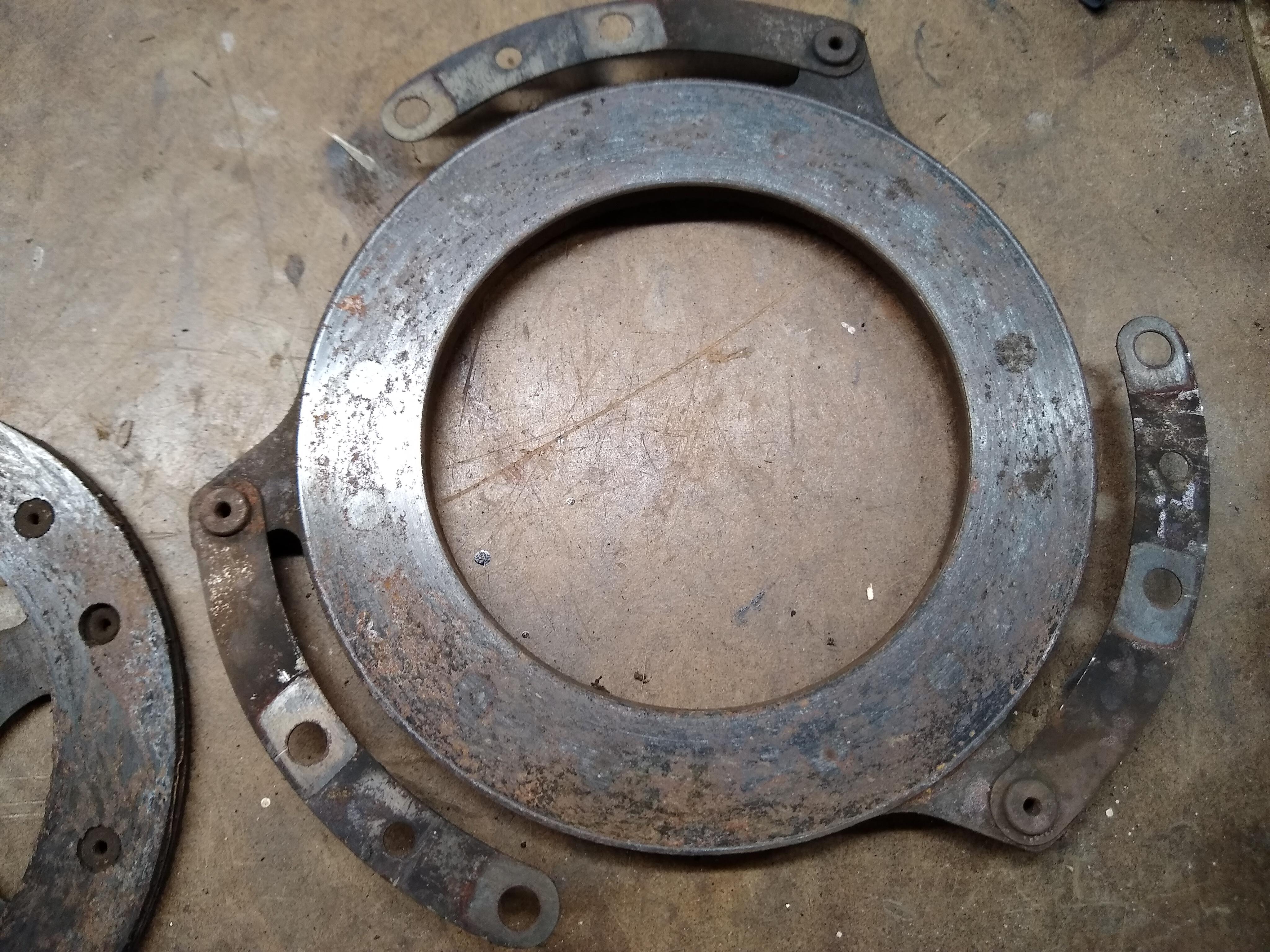

Some surface rust all around on everything but no pitting.  Diaphragm spring is a bit lopsided / squashed on one side.  You can see where the tab on the center hub has shifted out of place. Two of the tabs on the pressure plate have flattened out.  Friction ring material is starting to separate / flake apart a bit.  Flywheel is rusty but the teeth all look fine.[Image]
[Image]

[Image]

[Image]

[Image]

[Image]

[Image]

[Image]

[Image]
